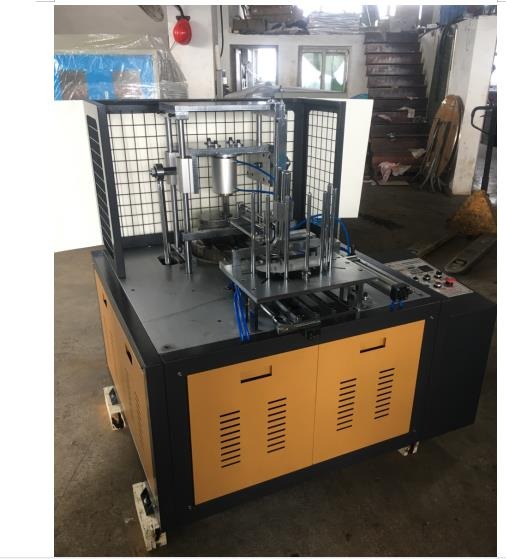

Automatic paper cake tray forming machine ZL106
Instruction:
VKD106 is newest Cake Tray Forming Machine use machine hand to clip paper, feeding paper, separate paper, punching, discharge etc. This model can make different size of cake tray through changing mould. Simple structure, inverter, auto temperature controller, easy to operate, high efficient, stable running.
Technical specification:
|
Paper size |
Φ80-φ265mm |
|
Raw material |
Grease proof paper 30-40gsm |
|
Capacity |
15-25pcs/time 20-40times/min. |
|
Power source |
220v380V / 50HZ ( it can be changed if customer require) |
|
Total power |
2.5KW |
|
Air source |
working pressure 0.6MPa air volume 0.3m3/min |
|
Weight |
900kg |
|
Package Size |
1650×1450×1750mm |
